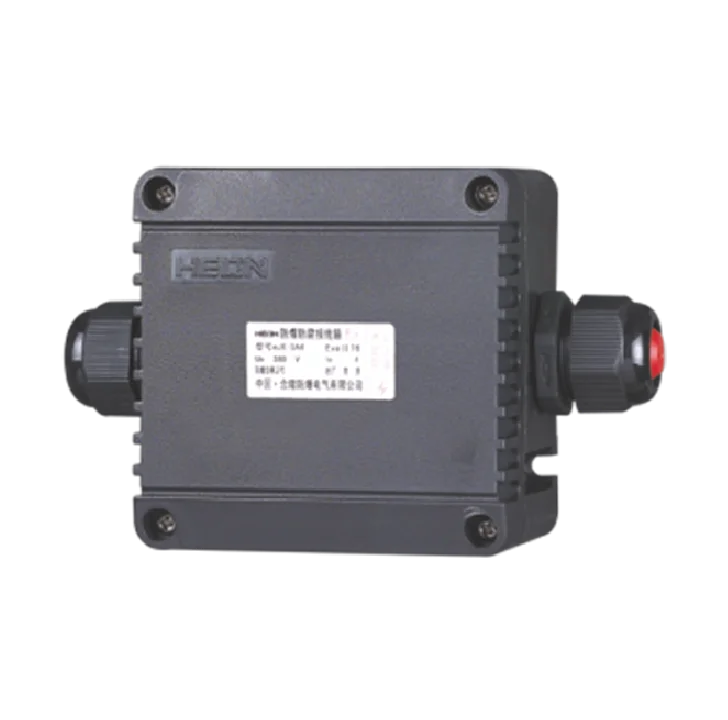

Helon HLBH05 Terminal Box Explosion Proof

Terminal Box Explosion Proof ATEX Certified

Explosion Protection

IECEx (IEC)

ATEX (CENELEC, EN)

China Ex (GB)

Material

Nylon (PA66)

Ex Marking

Ex II 2 G Ex eb IIC T6 Gb

Ex II 1 G Ex ia IIC T6 Ga

Ex II 2 G Ex ib IIC T6 Gb

Ex II 2 D Ex tb IIIC T80°C Db

Ambient Temperature

-40°C~+40/55°C

-40°C~+40/45/55/60°C

Zone Application

Zone 0 , Zone 1 and Zone 2

Zone 21 and Zone 22

IP66 Protection

Category	Information
Ex Marking	112 G Ex eb lIC T6 Gb Ex eb IIC T6 Gb 1 G Ex ia IC T6 Ga Ex ia IIC T6 Ga 2 G Ex ib IIC T6 Gb Ex ib IIC T6 Gb 2 D Ex tb IIIC T80°C Db Ex tb IIIC T80°C Db
Gas	Ex e, Ex tb Ex i, Ex tb
Dust	Ex e, Ex tb Ex i, Ex tb
Conformity to Standards	IEC 60079-0, IEC 60079-7, IEC 60079-11, IEC 60079-31 EN 60079-0, EN 60079-7, EN 60079-11, EN 60079-31 GB3836.1, GB3836.3, GB3836.4, GB12476.1, GB12476.5
Enclosure Material	Nylon (PA66)
Enclosure Color	Black
Brand of Terminal	Type A: open crimping type terminal in enclosure Type B (Standard): International brand
Exposed Fastener	Stainless steel
Rated Voltage	Max. 500V AC, 220V DC
Rated Current	Max. AC/DC36V 10A, 12A (Ex e IIC T6 Gb) 5A (Ex ia IIC T6 Ga, Ex ib IIC T6 Gb)
Wire Diameter	1.5mm² (Ex e, Ex tb)
Degree of Protection	IP66
Ambient Temperature	-40°C ~ +45/55/60°C (Ex e, Ex tb) -40°C ~ +45/65°C (Ex i, Ex tb)
Cable Gland	M20X1.5, M25X1.5, M32X1.5 (Cable gland is not matched as standard, please specify if necessary)
